Evidence for optional stopping

Author

Šimon Kucharský

Published

May 6, 2025

Code

import os

if "KERAS_BACKEND" not in os.environ:
    # set this to "torch", "tensorflow", or "jax"
    os.environ["KERAS_BACKEND"] = "jax"

import matplotlib.pyplot as plt
import numpy as np

import keras
import bayesflow as bf
import pandas as pd

In this example we will evaluate the evidence that the results of the 9 studies presented by Bem et al. (2011) are contaminated by optional stopping.

Simulator

The generative model is same as in the example on Pearson’s correlation, though in this case we make two variants: null and alternative models. Under the null model, \(\rho\) is held fixed at zero, whereas under the alternative model, \(\rho \sim \text{Uniform}(-1, 1)\).

To generalize the procedure to different sample sizes, we will vary \(n\) between 3 and 20.

Note that we change the prior model probability of the null model to 0.8 (and correspondingly of the alternative model to 0.2). The null model doesn’t generate many extreme correlations (i.e., correlations close to -1 and 1). Increasing the prior model probability ensures that the trainer has enough examples of the sampling distribution under the null model in the tails.

Code

def context(batch_size):
    return dict(n = np.random.randint(3, 21))

def prior_null():
    return dict(rho=0)

def prior_alternative():
    return dict(rho=np.random.uniform(low=-1, high=1))

def likelihood(rho, n):
    y = np.random.multivariate_normal(mean=[0, 0], cov = [[1,rho], [rho,1]], size=n)
    r = np.corrcoef(y, rowvar=False)[0,1]
    return dict(r=r)

simulator = bf.simulators.ModelComparisonSimulator(
    simulators=[
        bf.make_simulator([prior_null, likelihood]),
        bf.make_simulator([prior_alternative, likelihood])
    ],
    shared_simulator=context,
    p = [0.8, 0.2]
)

Approximator

We will use the model comparison approximator to compare the models. We will use a simple MLP layer for the model classification.

Code

adapter=(bf.Adapter()
    .broadcast("n", to="r")
    .concatenate(["n", "r"], into="classifier_conditions")
    .drop("rho")
)

Code

classifier_network = keras.Sequential([keras.layers.Dense(32, activation="gelu") for _ in range(6)])
approximator=bf.approximators.ModelComparisonApproximator(
    num_models=2,
    classifier_network=classifier_network,
    adapter=adapter
)

Training

Code

epochs=20
batches=100
batch_size=512
schedule=keras.optimizers.schedules.CosineDecay(1e-5, decay_steps=epochs*batches)
optimizer=keras.optimizers.Adam(schedule)
approximator.compile(optimizer)

Code

history=approximator.fit(
    epochs=epochs,
    num_batches=batches,
    batch_size=batch_size,
    adapter=adapter,
    simulator=simulator)

Code

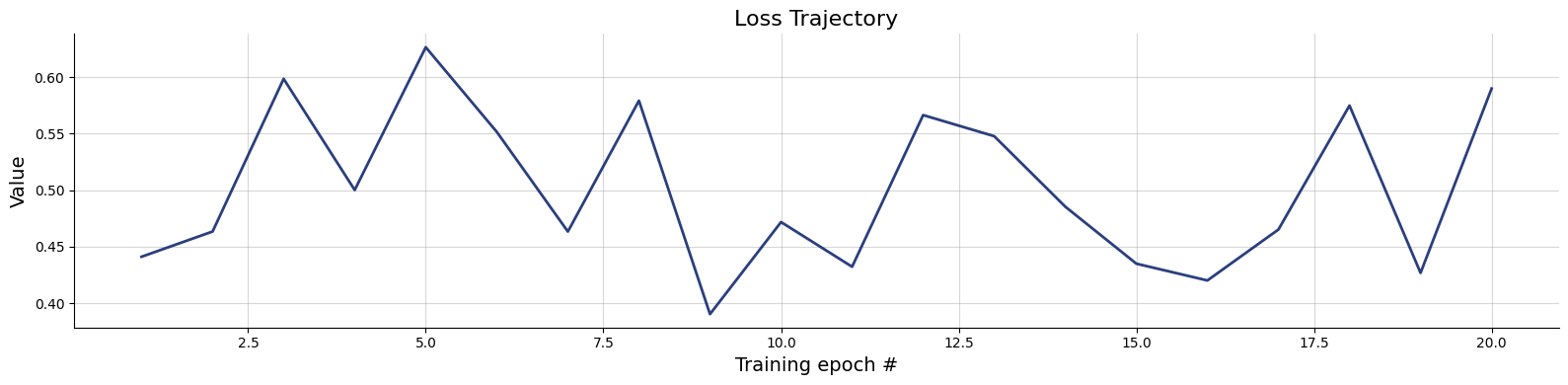

fig=bf.diagnostics.plots.loss(history)

Validation

Code

test_data = simulator.sample(10_000)
true_models = test_data['model_indices']
pred_models = approximator.predict(conditions=test_data)

Code

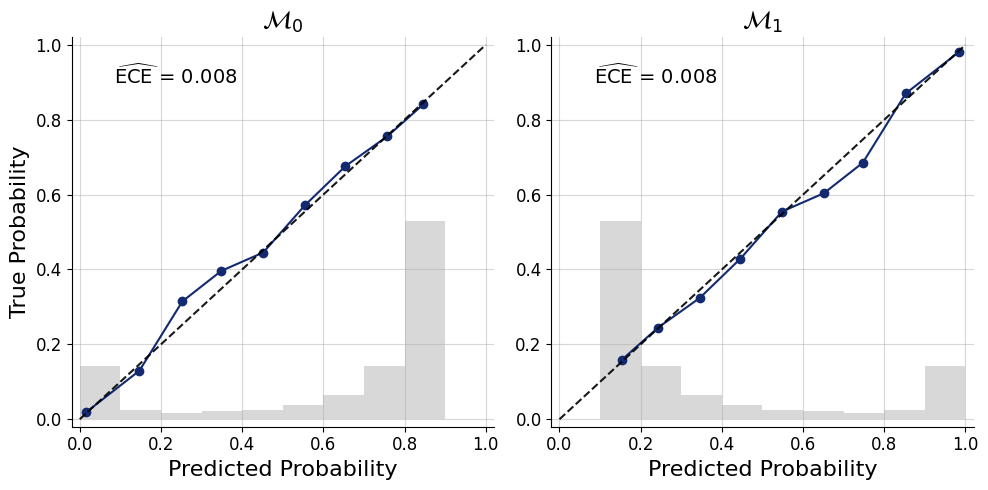

f=bf.diagnostics.plots.mc_calibration(
    pred_models=pred_models,
    true_models=true_models,
    model_names=[r"$\mathcal{M}_0$",r"$\mathcal{M}_1$"]
)

INFO:matplotlib.mathtext:Substituting symbol M from STIXNonUnicode
INFO:matplotlib.mathtext:Substituting symbol M from STIXNonUnicode
INFO:matplotlib.mathtext:Substituting symbol M from STIXNonUnicode
INFO:matplotlib.mathtext:Substituting symbol M from STIXNonUnicode

Code

f=bf.diagnostics.plots.mc_confusion_matrix(
    pred_models=pred_models,
    true_models=true_models,
    normalize="true",
    model_names=[r"$\mathcal{M}_0$",r"$\mathcal{M}_1$"]
)

INFO:matplotlib.mathtext:Substituting symbol M from STIXNonUnicode
INFO:matplotlib.mathtext:Substituting symbol M from STIXNonUnicode
INFO:matplotlib.mathtext:Substituting symbol M from STIXNonUnicode
INFO:matplotlib.mathtext:Substituting symbol M from STIXNonUnicode

Inference

Now that we have trained the network, we can compute the Bayes factor in favuor of the model that posits that there is a correlation between the effect size and sample size.

Recall that we increased the prior model probability of the null model to 0.8. This means that in order to calculate the Bayes factor in favour of the alternative model, we must divide the posterior odds with the prior odds.

Code

inference_data = dict(
    n = np.array([[9]]),
    r = np.array([[-0.8717038]])
)
posterior_model_probs = approximator.predict(conditions=inference_data)[0]

posterior_model_odds_10 = posterior_model_probs[1] / posterior_model_probs[0]
prior_model_odds_10 = 0.2 / 0.8
bf_10 = posterior_model_odds_10 / prior_model_odds_10
bf_10

59.72677230834961

\(\text{BF}_{10} \approx 60\) provides evidence for optional stopping.

Note: The results here are only approximate and differ from the original analysis by about a factor of 3. This is because the classification network cannot extrapolate well for such an extreme correlation (from the perspective of the null model).

References

Lee, M. D., & Wagenmakers, E.-J. (2013). Bayesian Cognitive Modeling: A Practical Course. Cambridge University Press.

Reuse

CC BY NC
