Repeated measurement of IQ

Author

Šimon Kucharský

Published

May 6, 2025

Code

import os

if "KERAS_BACKEND" not in os.environ:
    # set this to "torch", "tensorflow", or "jax"
    os.environ["KERAS_BACKEND"] = "jax"

import matplotlib.pyplot as plt
import numpy as np
import bayesflow as bf

INFO:bayesflow:Using backend 'jax'

In this example we build a model that estimates the IQ score of three participants (\(i \in (1, 2, 3)\)), each taking part in three IQ tests (\(j \in (1, 2, 3)\)). The Bayesian graphical model is as follows

\[\begin{equation} \begin{aligned} \mu_i & \sim \text{Uniform}(0, 300) \\ \sigma & \sim \text{Uniform}(0, 100) \\ x_{ij} & \sim \text{Gaussian}(\mu_i, \sigma). \\ \end{aligned} \end{equation}\]

We use rather uninformative priors both for \(\mu\) and for \(\sigma\). Follow this example and the book questions will lead to you to customizing this workflow with different custom priors!

Simulator

Again, we will use handcrafted summary statistics - in this case, we just calculate the mean and standard deviation for each person.

Code

def prior():
    mu=np.random.uniform(low=0, high=300, size=3)
    sigma=np.random.uniform(low=0, high=100)
    return dict(mu=mu, sigma=sigma)

def summary(x):
    mean = np.mean(x, axis=-2)
    sd = np.std(x, axis=-2)
    return dict(mean=mean, sd=sd)

def likelihood(mu, sigma):
    x=np.random.normal(loc=mu, scale=sigma, size=(3, 3))
    return summary(x)

simulator=bf.make_simulator([prior, likelihood])

Approximator

Code

adapter = (
    bf.Adapter()
    .constrain("mu", lower=0, upper=300)
    .constrain("sigma", lower=0, upper=100)
    .standardize(include=["mu", "sigma"])
    .concatenate(["mu", "sigma"], into="inference_variables")
    .concatenate(["mean", "sd"], into="inference_conditions")
    )

Code

workflow=bf.BasicWorkflow(
    simulator=simulator,
    adapter=adapter,
    inference_network=bf.networks.CouplingFlow()
)

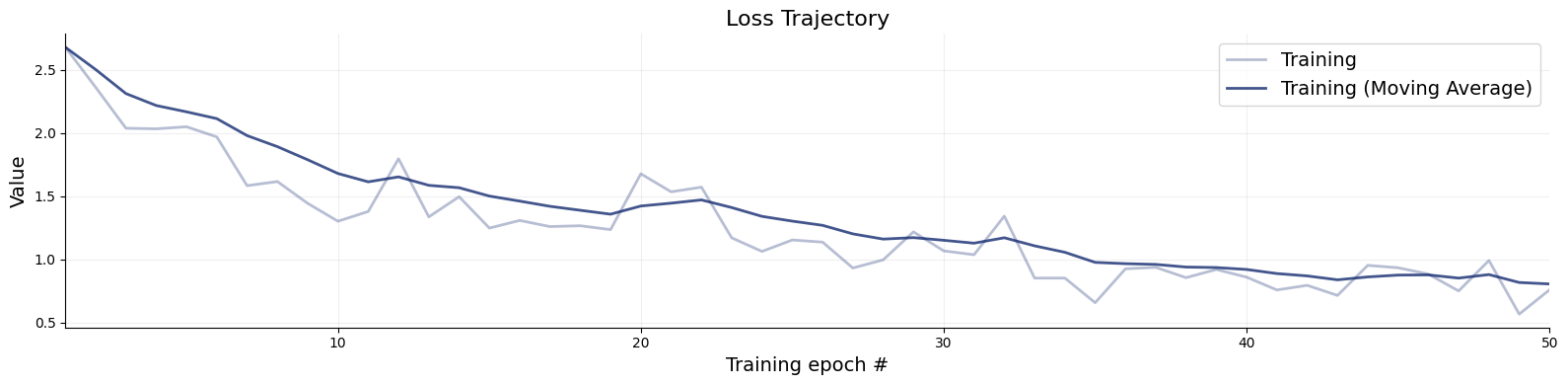

Training

Code

history=workflow.fit_online(epochs=50, batch_size=512)

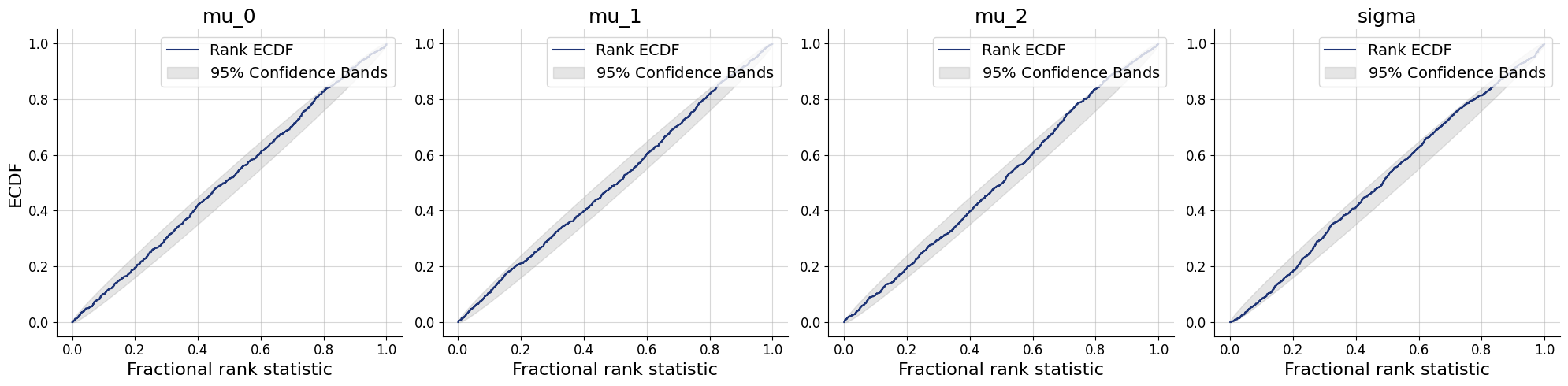

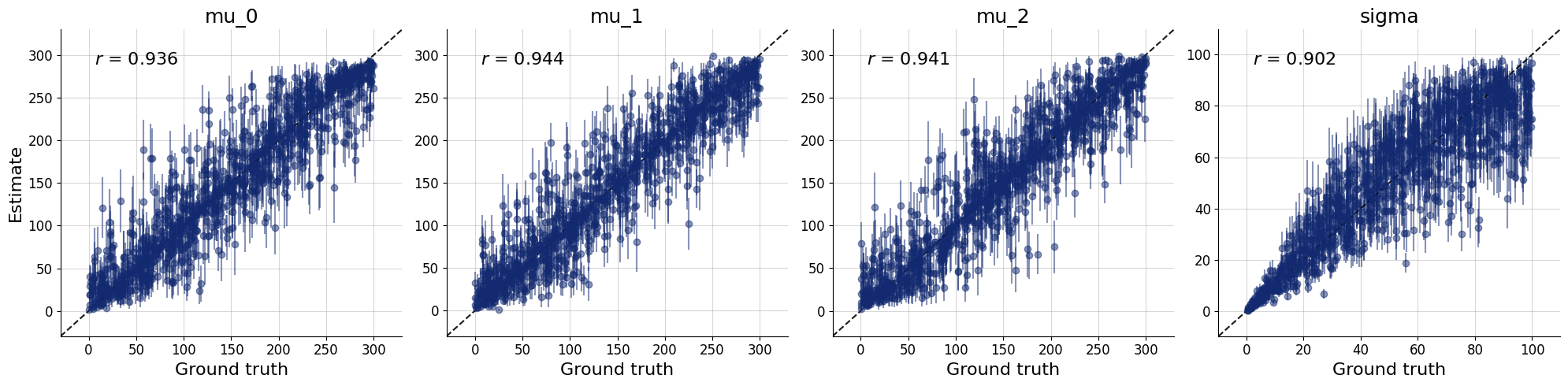

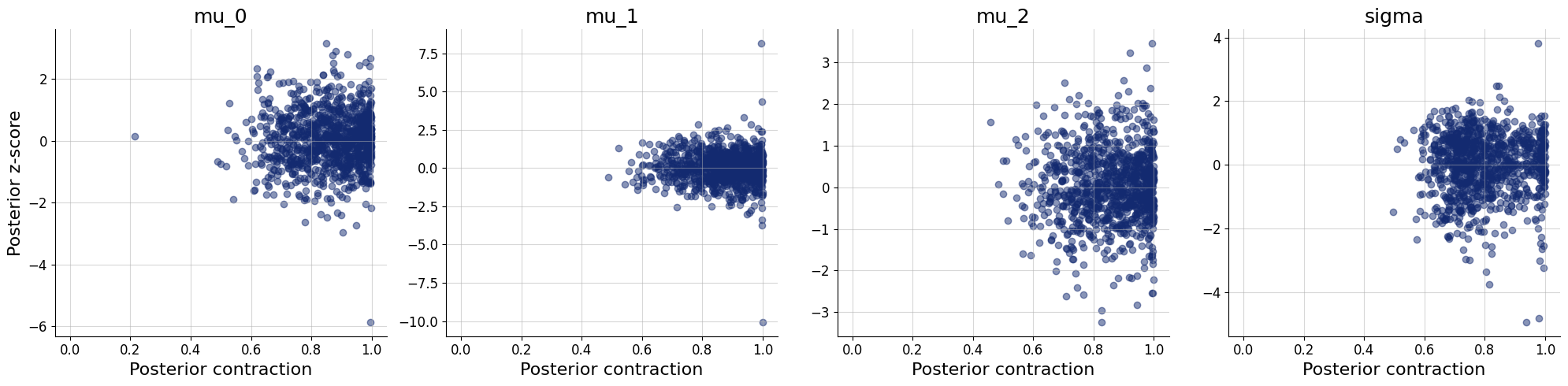

Validation

Code

test_data=simulator.sample(1000)
figs=workflow.plot_default_diagnostics(test_data=test_data, num_samples=500)

Inference

Code

x=np.array([
    [[ 90,  95, 100],
     [105, 110, 115],
     [150, 155, 160]]
    ])
x=x.swapaxes(1, 2)

inference_data=summary(x)

Code

samples=workflow.sample(num_samples=2000, conditions=inference_data, split=True)

Code

workflow.samples_to_data_frame(samples).describe().transpose()

	count	mean	std	min	25%	50%	75%	max
mu_0	2000.0	94.010524	4.384315	63.002457	91.229183	93.958546	96.775616	114.337432
mu_1	2000.0	109.797457	4.557817	85.536897	107.156925	109.449254	112.218850	137.207358
mu_2	2000.0	151.907019	12.026682	89.914878	145.126097	151.700725	157.969029	214.173878
sigma	2000.0	7.270084	2.392036	2.487769	5.650259	6.864182	8.381889	26.170801

References

Lee, M. D., & Wagenmakers, E.-J. (2013). Bayesian Cognitive Modeling: A Practical Course. Cambridge University Press.
